Hunterdon
Developmental Center

NJ DPMC

Located on a sprawling 102 acres in Clinton, the Hunterdon Developmental Center has provided a broad spectrum of behavioral, medical and habilitation services to women and men with intellectual and developmental disabilities since 1969. Currently, the HDC has a census of 480 residents. Crane Associates designed and replaced the roofing system on cottage #8 .

CLIENT: DEPARTMENT OF HUMAN SERVICES
LOCATION: CLINTON, NJ
COMPLETION YEAR: 2017
DISCIPLINE: GOVERNMENT FACILITY
SIZE: 12,700 SQ. FT.



PROJECT BRIEF

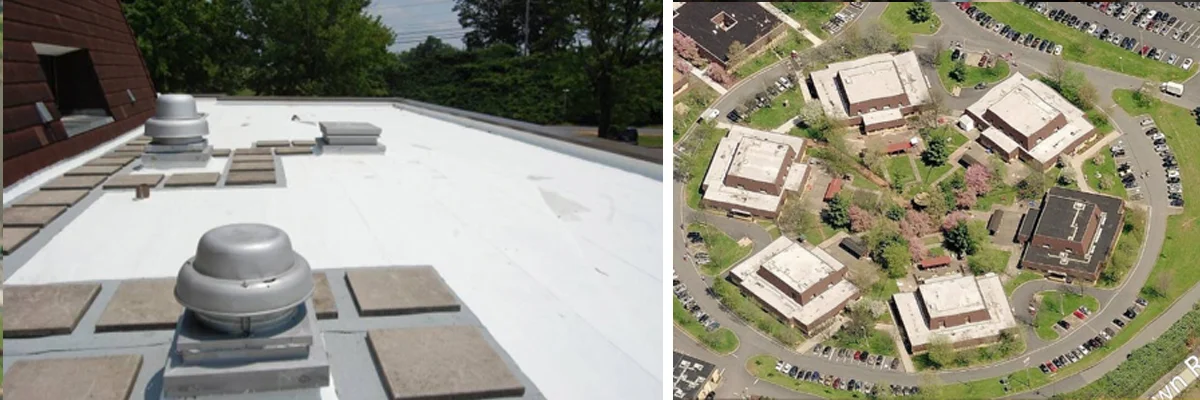

Upon completion of an investigatory survey and analysis of one of the 18 campus buildings, Crane Associates provided plans for a roofing system replacement including the main floor and penthouse roof.  The scope included removal of the existing built-up roof system(s) including membrane, insulation, lightweight insulating concrete, and flashings. Replacement consisted of a modified three-ply built-up system with cap sheet coated with a high solar reflectance coating. Additional scope included repairs to the mansard tile roofing, addition of overflow roof drains and replacement of suspended ceilings in several rooms. Crane worked closely with administrative and construction personnel to ensure accurate execution of the project to agency and state standards and codes. Project environment was also tested for asbestos, abatement and air quality monitoring for roof drain modifications.
